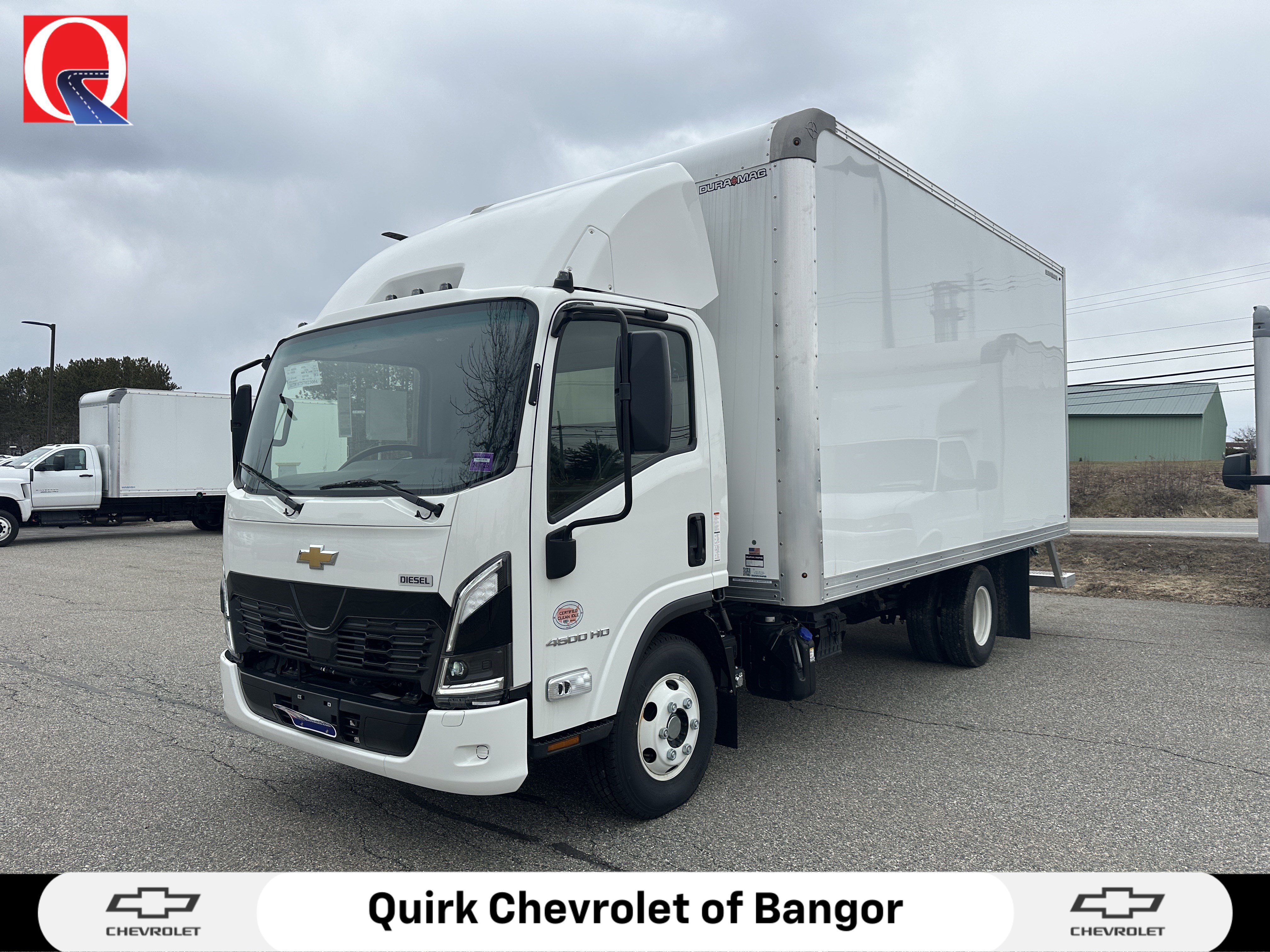

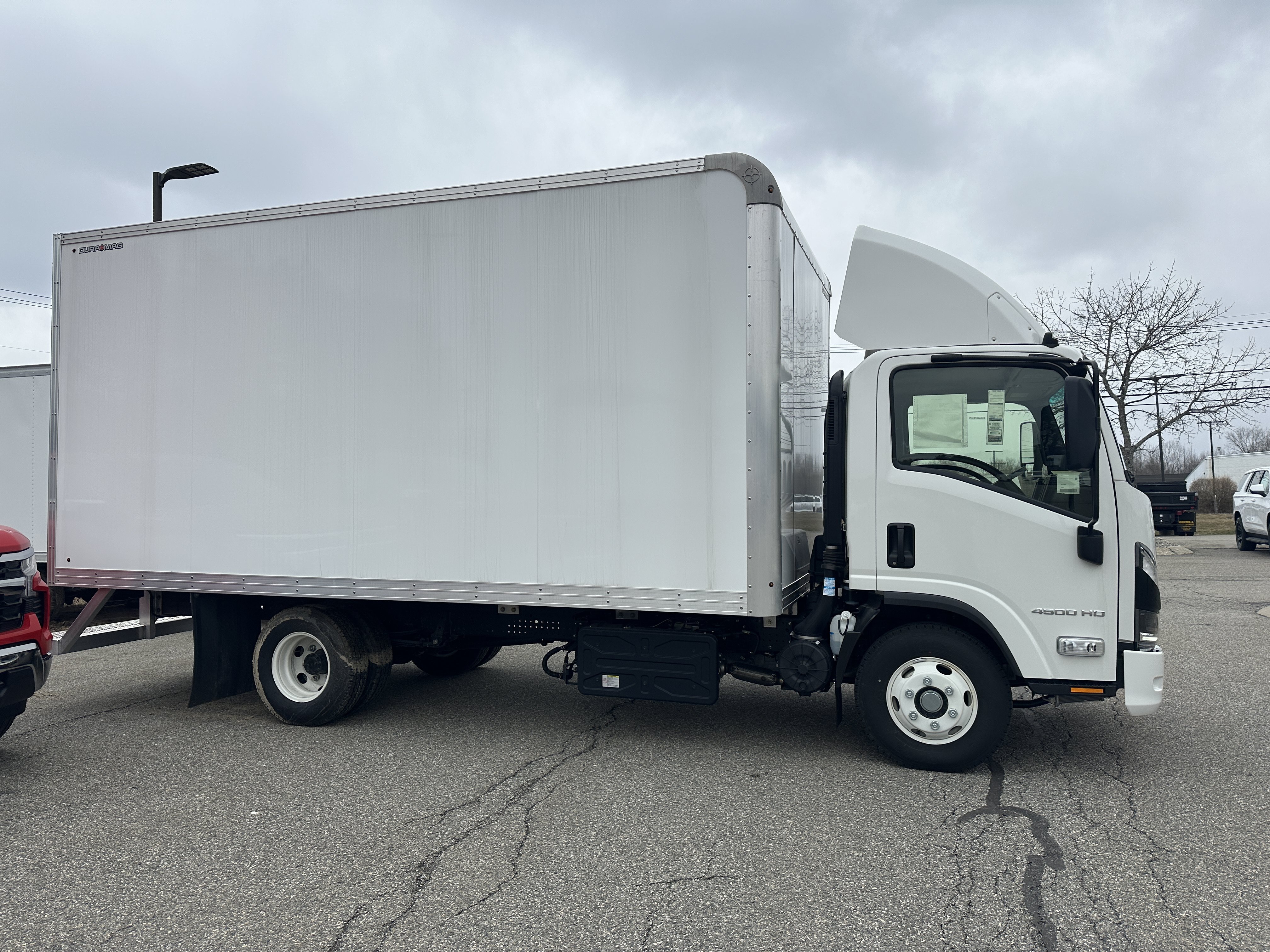

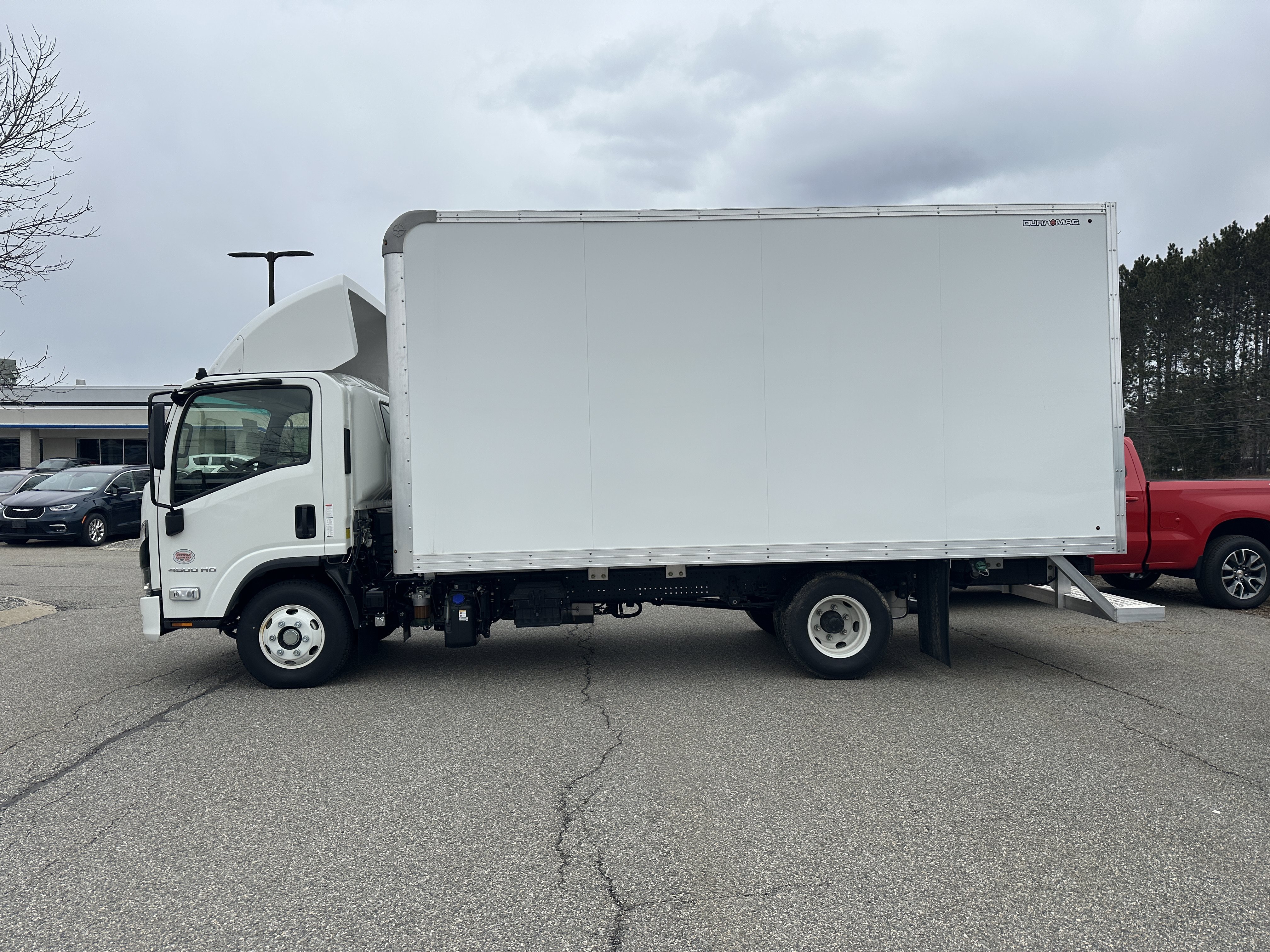

New 2025 Chevrolet Low Cab Forward 4500 HD
- VIN: JALCDW167S7023064
- Stock: BC47103
(17) Photos
/
Details Form Opened
Details
New 2025 Chevrolet Low Cab Forward 4500 HD
VIN: JALCDW167S7023064STOCK: BC47103Basic Info
-
Cab TypeRegular Cab
-
Exterior:Arc White
-
Drivetrain:Rear Wheel Drive
-
Interior:Medium Ash Gray, Cloth Seat Trim
-
Transmission:Automatic
Key Features
-
Android Auto
-
Apple CarPlay
-

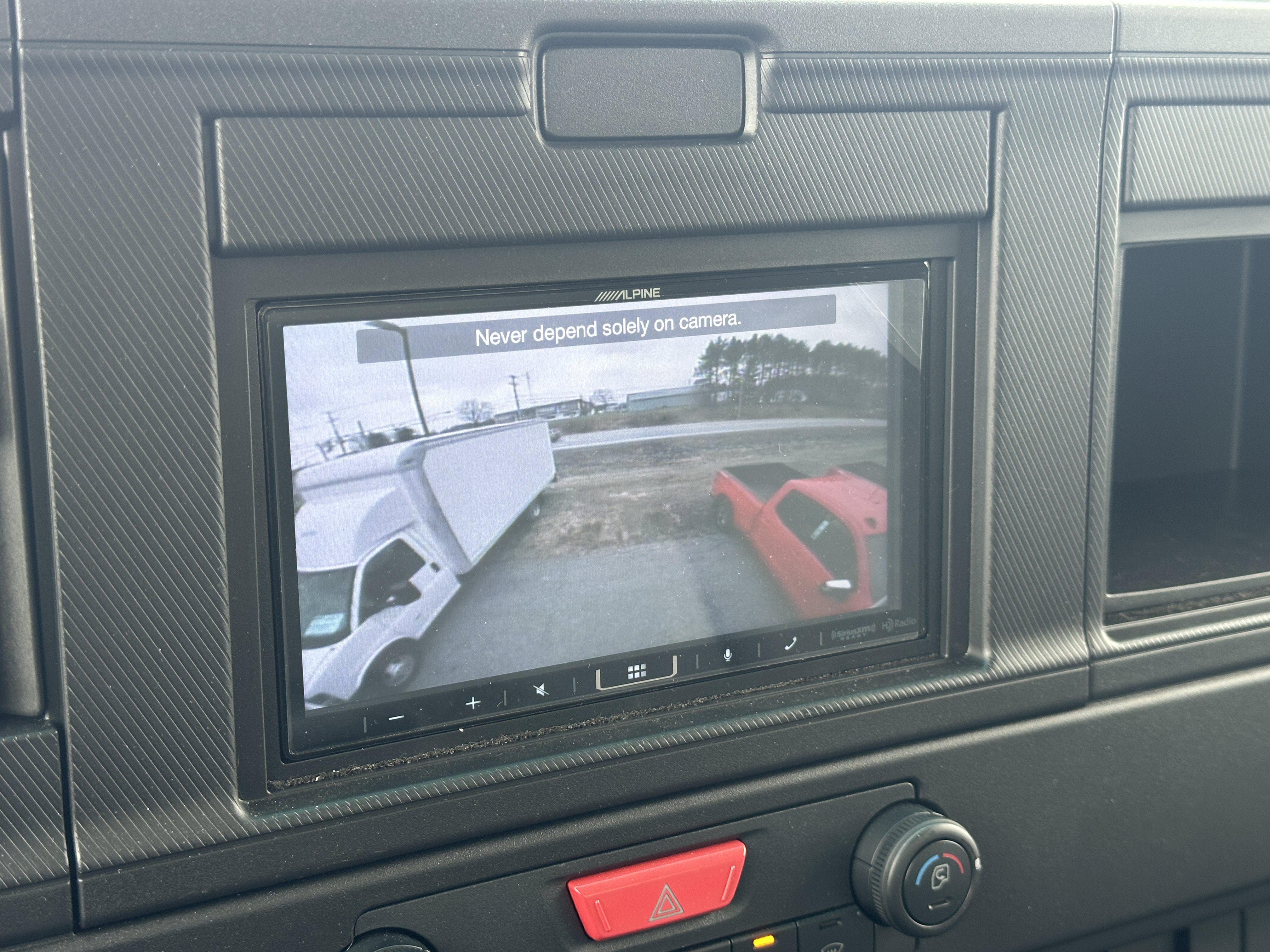

Backup Camera
-
Bluetooth
-
Keyless Entry
Vehicle Details
Exterior

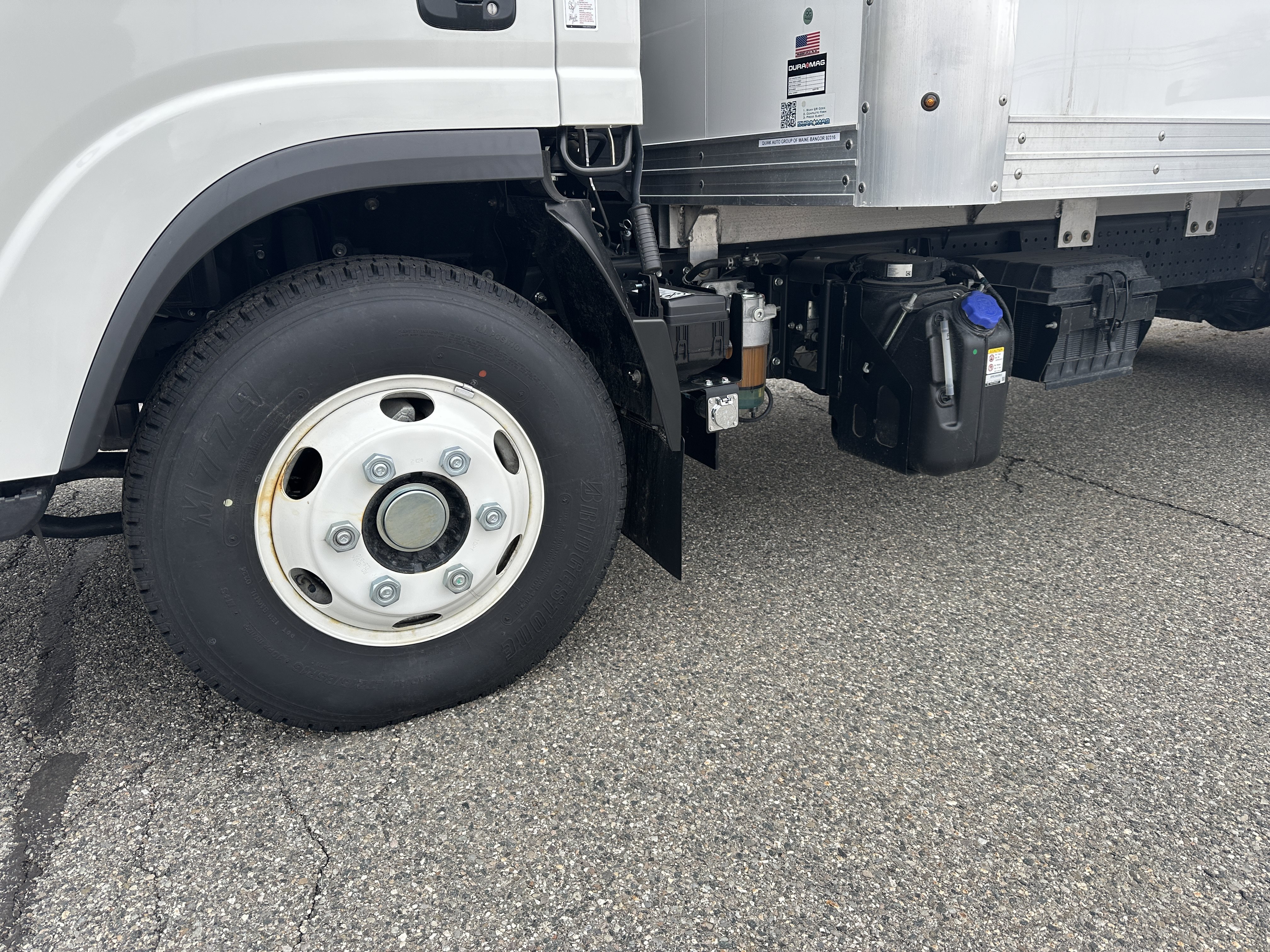

- Wheels, 16" x 6, K. steel (STD)
- Tires, rear, 215/85R16 E all-season (STD)
- Tires, front, 215/85R16 E, all-season (STD)
- Grille, Black
- Assist steps
- Glass, tinted
- LED Headlamps includes integrated LED turn signal indicators
- Headlamp washer system
- Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
- Windshield wiper, pulse, wet arm

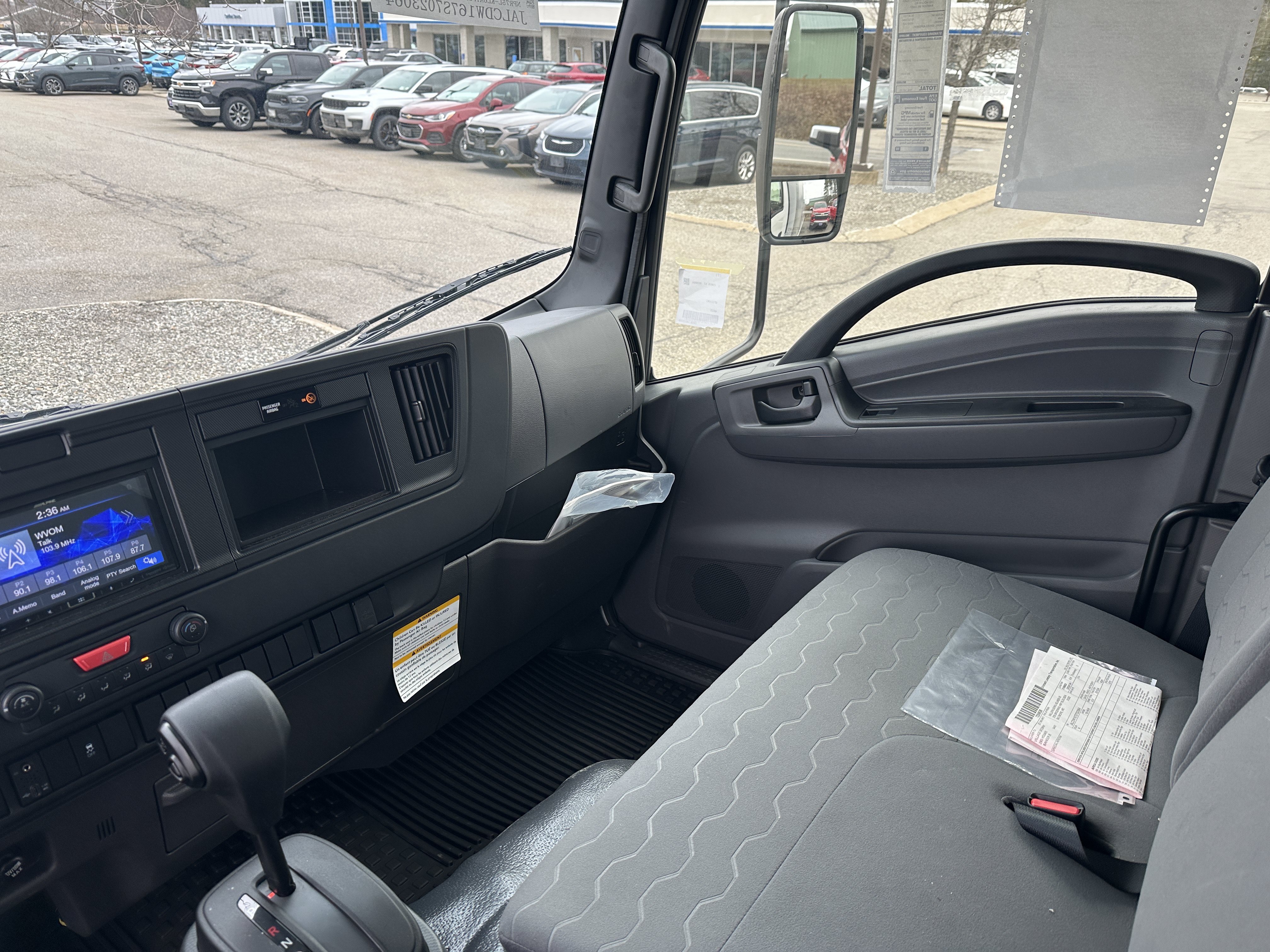

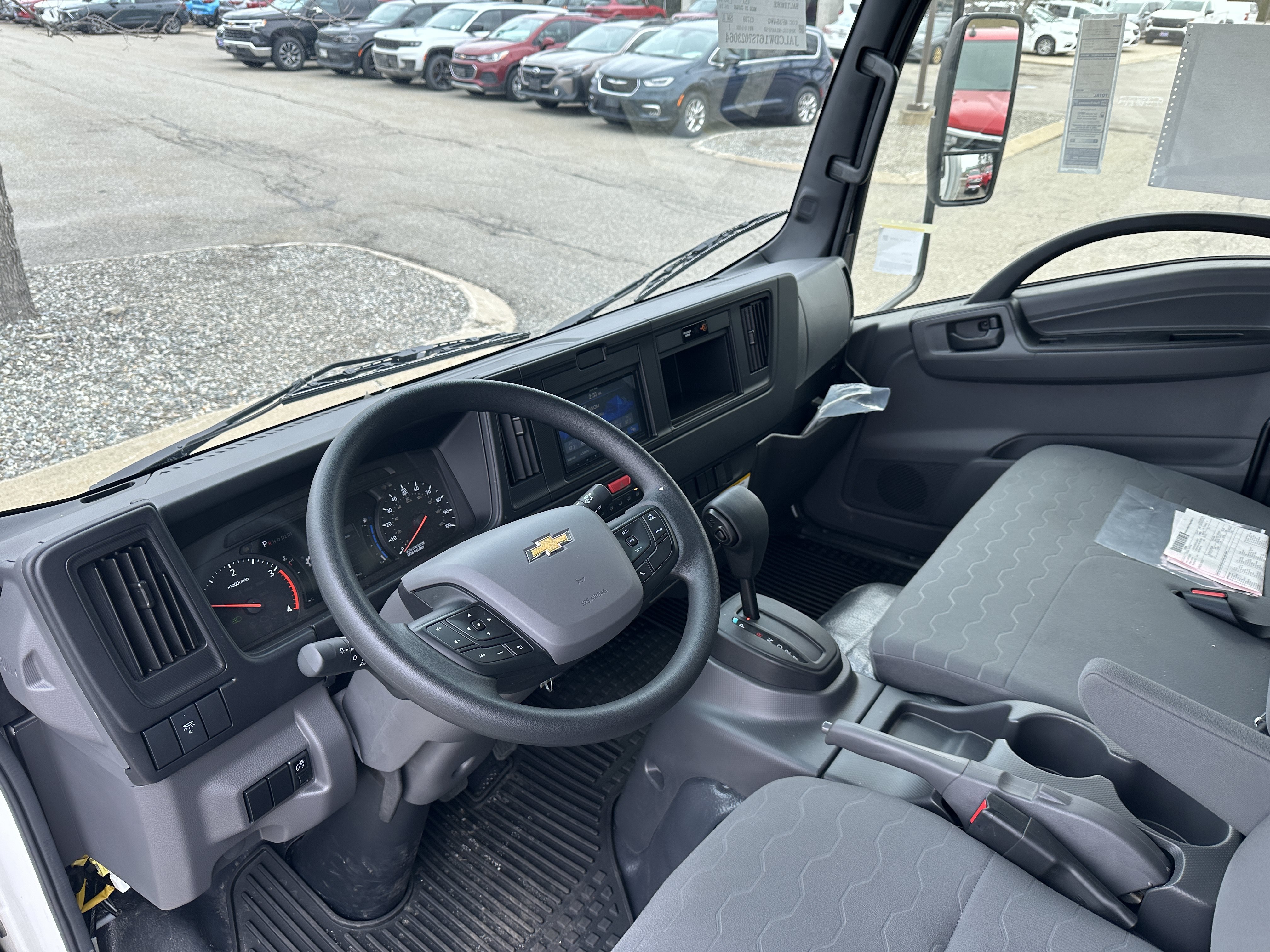

Interior

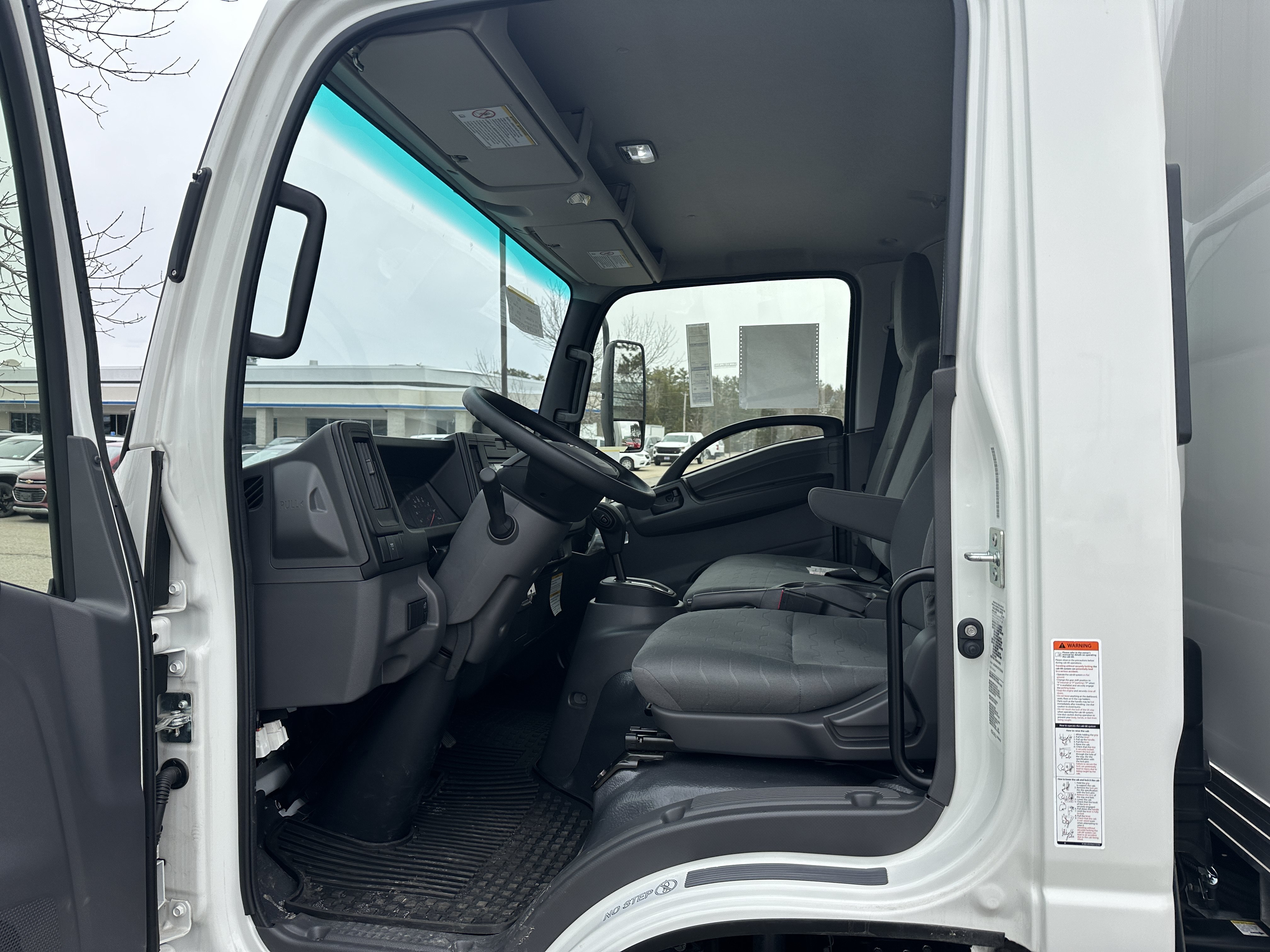

- Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
- Cup holders
- Floor mats

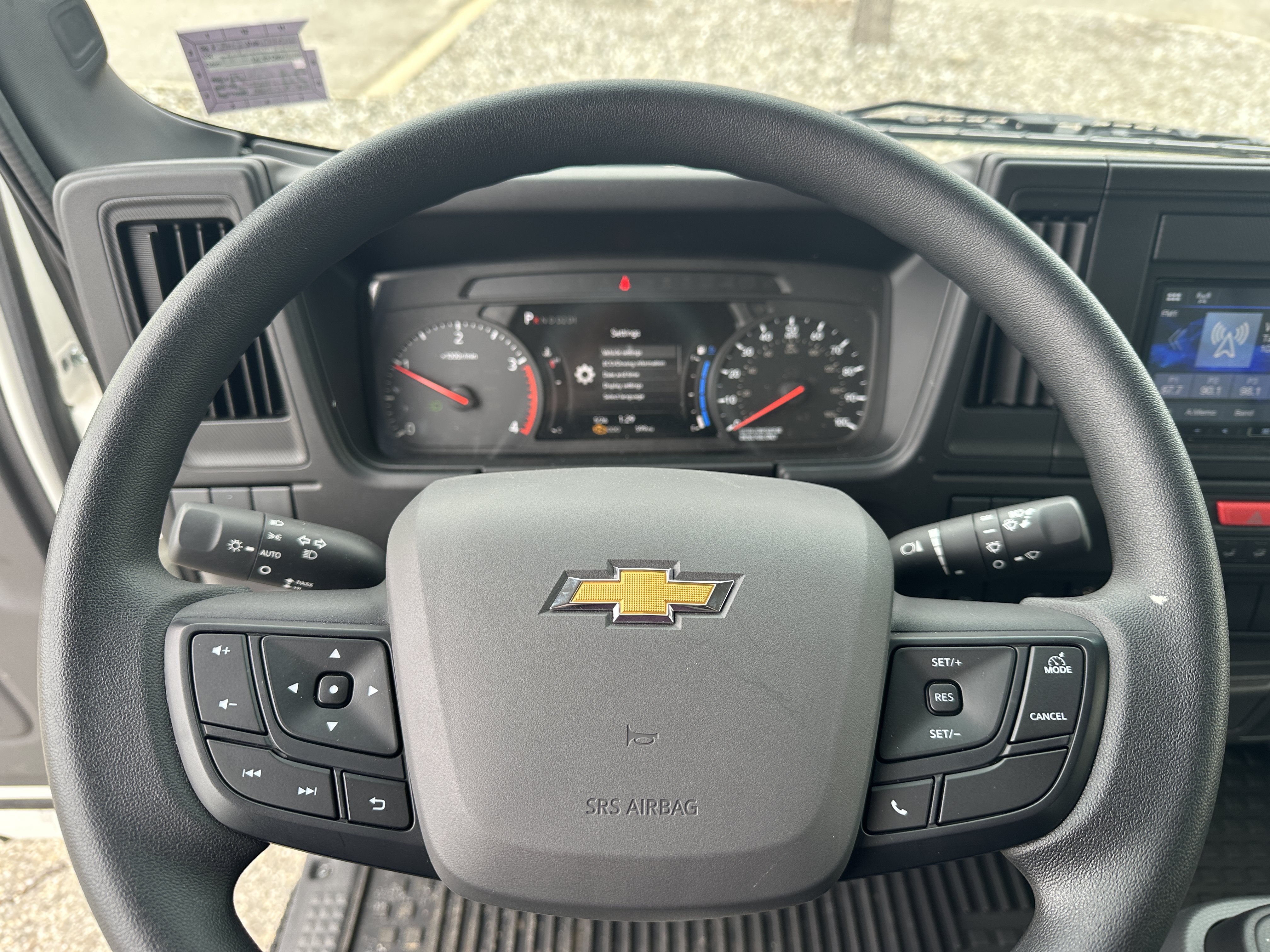

- Steering wheel, urethane
- Steering wheel, tilt and telescopic
- Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)
- Air conditioning, single-zone electronic, integral in-dash mounted
- Windows, power
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Storage, door pockets

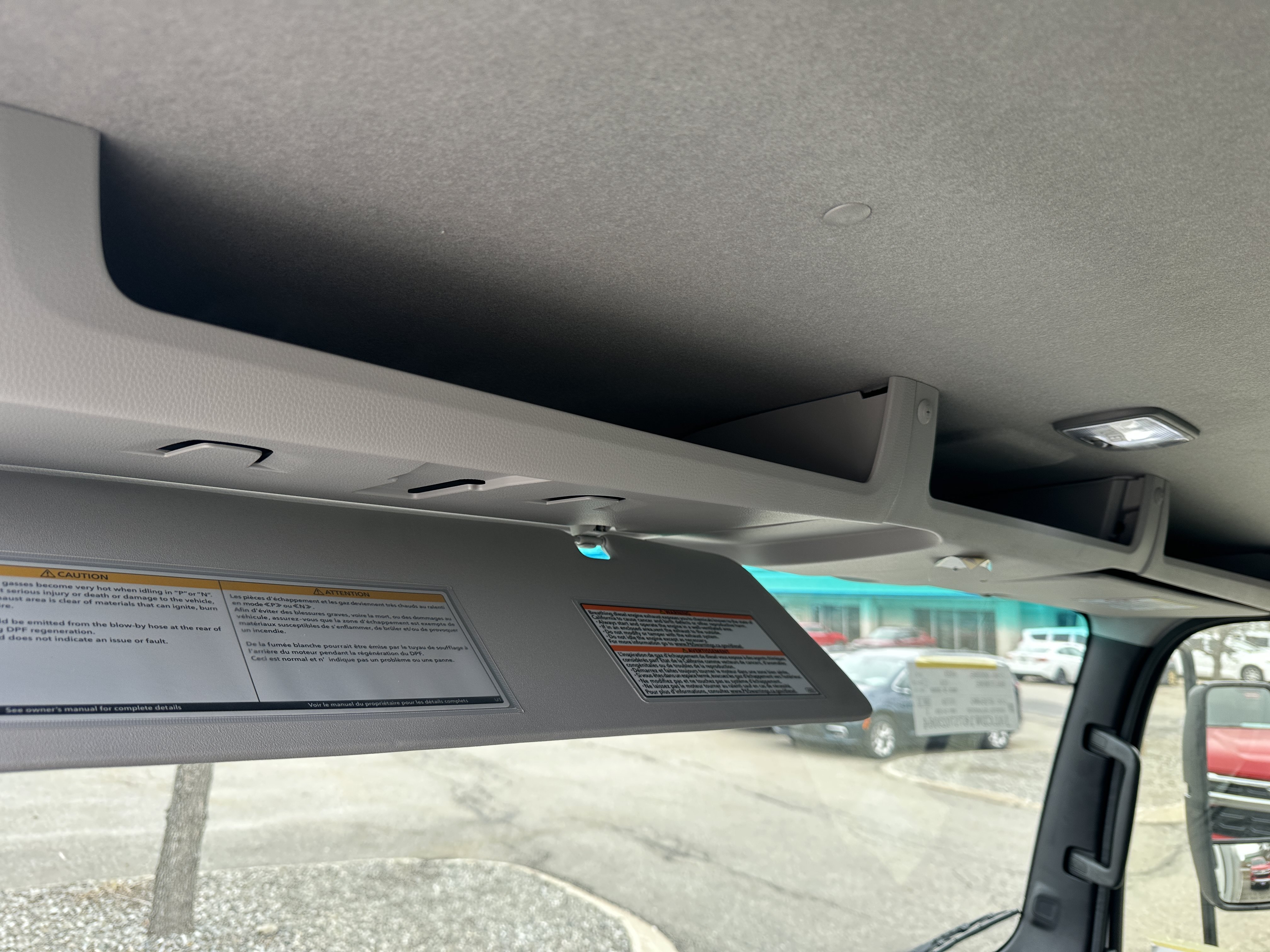

- Lighting, interior dome
- Rear dome and body lamp switch
- Storage, seatback pockets

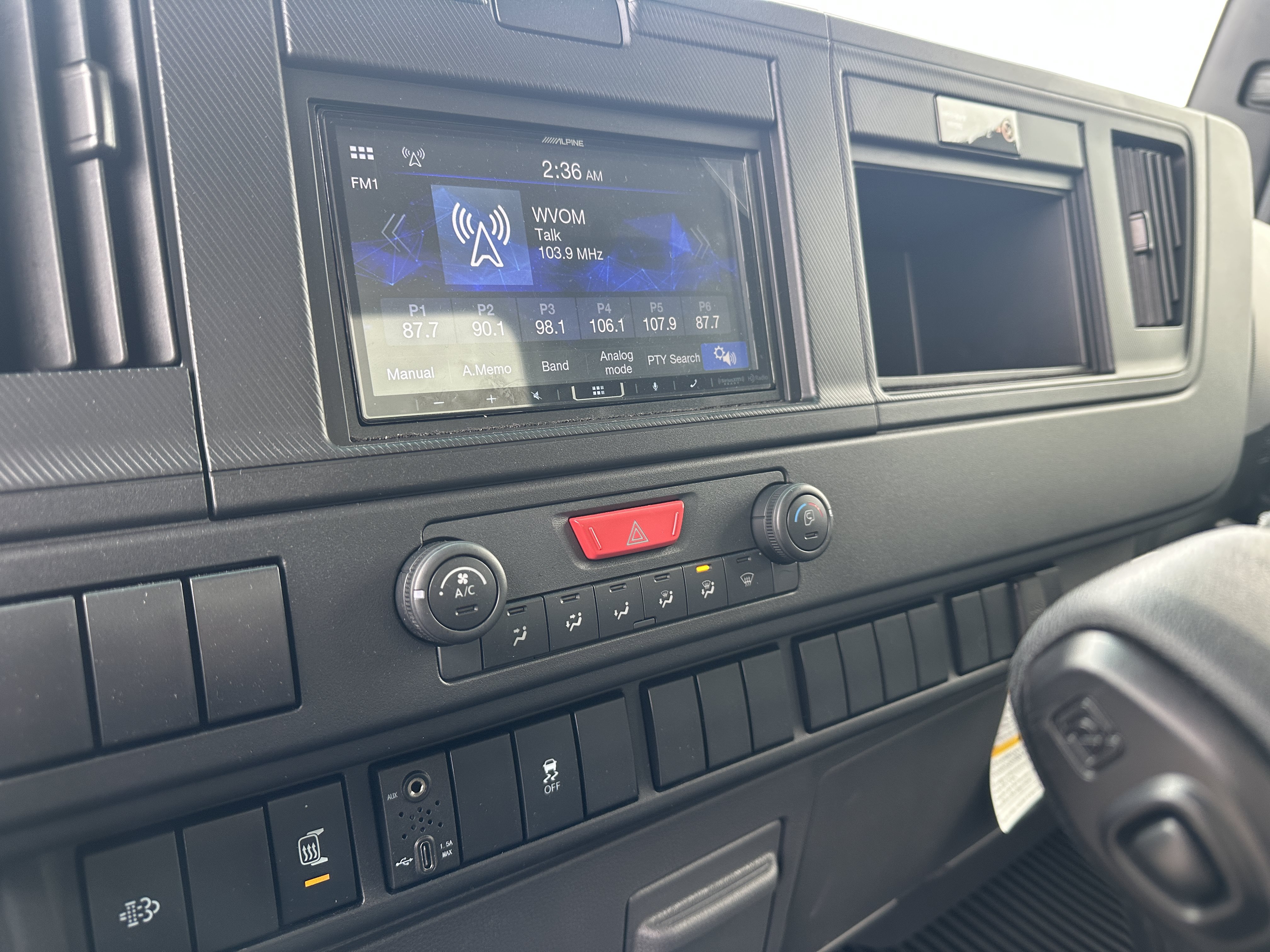

Entertainment
- Audio system feature, 2 speakers
Mechanical
- Rear axle, 4.56 ratio
- Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
- Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
- Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Drivetrain, rear-wheel drive
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
- Alternator, 140 amps
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide.
- Incomplete vehicle certification
- Wheelbase, 150" (381.0 cm)
- GVWR, 14,500 lbs. (6577 kg)
- Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
- Rear Suspension, 9,880 lbs. (4481kg), tapered leaf spring with shock absorbers (Standard on 4500 HD only.)
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 4500 HD and 4500 XD only.)
- Rear axle, 11,020 lbs. (4998 kg), full-floating with oil lubricated rear wheel-bearings
- Vehicle Application Truck
- Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
- Exhaust brake
- Exhaust, single horizontal outlet
- Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
Safety
- Airbags, frontal, driver and right front passenger
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Daytime Running Lamps
Tech Specs
- Vehicle Name: Chevrolet 4500 HD LCF Diesel
- Body Style: Regular Cab Chassis Cab
- Body Code:
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 3
- Number of Passenger Doors: 2
- Gross Axle Wt Rating - Front: 6830
- Gross Axle Wt Rating - Rear: 9880
- Curb Weight - Front: 4061
- Curb Weight - Rear: 2034
- Gross Vehicle Weight Rating Cap: 14500
- Gross Combined Wt Rating: 20500
- Engine Order Code: I1B
- Engine Type: Turbocharged Diesel I4
- Displacement: 5.2L/317
- Fuel System: Direct Injection
- SAE Net Horsepower @ RPM: 215 @ 2500
- SAE Net Torque @ RPM: 452 @ 1850-2750
- Trans Order Code: IR7
- Trans Type: 6
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): 3.742
- Second Gear Ratio (:1): 2.003
- Third Gear Ratio (:1): 1.343
- Fourth Gear Ratio (:1): 1.000
- Fifth Gear Ratio (:1): 0.773
- Sixth Gear Ratio (:1): 0.634
- Reverse Ratio (:1): - TBD -
- Clutch Size:
- Trans Power Take Off:
- Trans PTO Access:
- Transfer Case Model:
- Transfer Case Gear Ratio (:1), High:
- Transfer Case Gear Ratio (:1), Low:
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd):
- Cold Cranking Amps @ 0° F (3rd):
- Maximum Alternator Capacity (amps): 140
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity: 20.8
- Engine Oil Cooler:
- Frame Type: Ladder-Type C-Section
- Sect Modulus Rails Only: 6.65
- Frame RBM: 364420
- Frame Strength: 54800
- Frame Thickness: 8.50 x 2.76 x 0.24
- Suspension Type - Front: Independent w/Tapered Leaf Springs
- Suspension Type - Rear: Independent w/Tapered Leaf Springs
- Spring Capacity - Front: 6830
- Spring Capacity - Rear: 9880
- Axle Type - Front: I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front: 6830
- Axle Capacity - Rear: 11020
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear: 4.56
- Shock Absorber Diameter - Front: 42.0
- Shock Absorber Diameter - Rear: 42.0
- Stabilizer Bar Diameter - Front: 1.65
- Stabilizer Bar Diameter - Rear:
- Front Tire Order Code: 2TA
- Rear Tire Order Code: 3TA
- Spare Tire Order Code:
- Front Tire Size: 215/85R16
- Rear Tire Size: 215/85R16
- Spare Tire Size:
- Front Tire Capacity: 2680
- Rear Tire Capacity: 2470
- Spare Tire Capacity:
- Revolutions/Mile @ 45 mph - Front: 682.9
- Revolutions/Mile @ 45 mph - Rear: 682.9
- Revolutions/Mile @ 45 mph - Spare:
- Front Wheel Size: 16 x 6
- Rear Wheel Size: 16 x 6
- Spare Wheel Size:
- Front Wheel Offset: 127
- Rear Wheel Offset: 127
- Spare Wheel Offset:
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- # of Bolt Holes - Spare:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 18.8-20.9
- Steering Ratio (:1), At Lock: 18.8-20.9
- Turning Diameter - Curb to Curb: 42.7
- Turning Diameter - Wall to Wall: 48.9
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line):
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ):
- Front Brake Rotor Diam x Thickness: 11.5 x - TBD -
- Rear Brake Rotor Diam x Thickness:
- Drum - Front (Yes or ):
- Front Drum Diam x Width:
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width: 12.6 x 3.94
- Fuel Tank Capacity, Approx: 30.0
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: Frame Rail
- Aux Fuel Tank Location:
- Front Head Room: 38.4
- Front Leg Room: 29.5
- Front Shoulder Room: 70.7
- Front Hip Room: 67.7
- Wheelbase: 150.0
- Length, Overall w/o rear bumper: 236.70
- Width, Max w/o mirrors: 81.3
- Height, Overall: 90.8
- Overhang, Front: 48.4
- Overhang, Rear w/o bumper: 43.1
- Front Bumper to Back of Cab: 70.9
- Cab to Axle: 127.5
- Cab to End of Frame: 170.6
- Ground to Top of Load Floor: - TBD -
- Ground to Top of Frame: 31.1
- Frame Width, Rear: 33.5
- Ground Clearance, Front: 7.5
- Ground Clearance, Rear: 7.5
- Front Frame Rating: - TBD -
- Seventh Gear Ratio (:1):
- Eighth Gear Ratio (:1):
- Ninth Gear Ratio (:1):
- Tenth Gear Ratio (:1):
- Eleventh Gear Ratio (:1):
- Twelfth Gear Ratio (:1):
- Thirteenth Gear Ratio (:1):
- Fourteenth Gear Ratio (:1):
- Fifteenth Gear Ratio (:1):
- Sixteenth Gear Ratio (:1):
- Seventeenth Gear Ratio (:1):
- Eighteenth Gear Ratio (:1):
- Nineteenth Gear Ratio (:1):
- Twentieth Gear Ratio (:1):
- Second Reverse Gear Ratio (:1):
- Third Reverse Gear Ratio (:1):
- Fourth Reverse Gear Ratio (:1):
- Fifth Reverse Gear Ratio (:1):
- Sixth Reverse Gear Ratio (:1):
- Body Weight (uncalculated): - TBD -
- Driver Weight: - TBD -
- Axle Ratio - Low Rear (:1):
- Driver Ratio: - TBD -
- Torque @ Clutch Engage: - TBD -
- Cab to Body: - TBD -
- Grade (%): - TBD -
- Frontal Area: - TBD -
- Governed Engine Speed (RPM):
- Torque Converter: 1.7639
- Front Wheel Description Cont.:
- Rear Wheel Description Cont.:
- Spare Wheel Description Cont.:
- Static Loaded Radius: - TBD -
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Spare Bolt Pattern:
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Number Of Tires Spare:
- Transmission Manufacturer: Aisin A465
- Transmission Type:
- Engine Series: 4HK1-TC
- Body Length Default Value: - TBD -
- Engine Horsepower At RPM: 215 @ 2500
- Engine Horsepower At Max Speed RPM: - TBD -
- Max Speed For Gradeability: - TBD -
- Model Group: 4500
- Vehicle Segment: Chassis
- Vehicle Type: Standard Cab
- Engine Displacement Units: 5.2
- Engine Camshaft: DOHC
- Engine Block Type: iron
- Engine Cylinder Count: 4
- Engine Valve Count: 4
- Country of Origin: Japan Isuzu Incomplete Vehicle (Med./Heavy)
Details
- Driver Air Bag
- Passenger Air Bag
- A/C
- ABS
- 4-Wheel Disc Brakes
- Rear Wheel Drive
- 4 Cylinder Engine
- Turbocharged
- Floor Mats
- Diesel Fuel
- Daytime Running Lights
- Power Door Locks
- Running Boards/Side Steps
- Cloth Seats
- Bucket Seats
- Power Steering
- Adjustable Steering Wheel
- Tires - Front All-Season
- Tires - Rear All-Season
- Traction Control
- 6-Speed A/T
- Power Windows
- A/T
- Steel Wheels
- Bluetooth Connection
- LED Headlights
